Hi could anyone grab me a picture of the rubber dust shield that cover the engine and how they mount from factory. My bike doesn't have them and as they are very cheap to buy I would like to get them back on the bike. I'm attempting to rebuild/ restore a 03 that I purchased no title that runs good but was beat to hell and back. I already found a clean title frame and got a new set of fairings ordered. Just trying to figure out a few things before I start assembling everything.



#9 here?
https://www.partzilla.com/catalog/ho...-cleaner-01-06



No I know how those go. Isn't there one under the airborne over the valve cover.

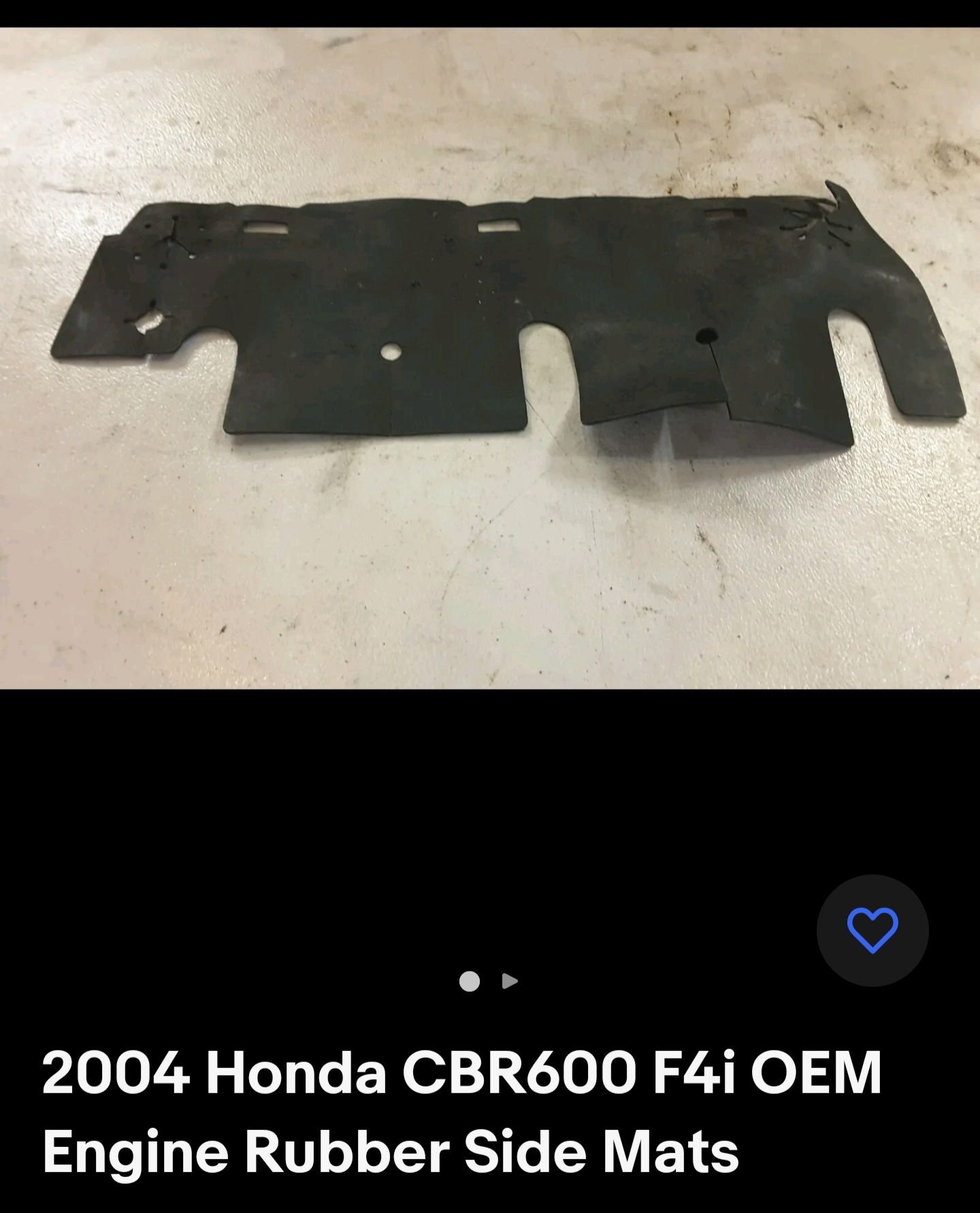

I couldn't find it on partzilla.com diagrams but have found it for sale on ebay just need to know how stuff is supposed to route through it.



I don't remember that one on my 2002 but it could have been added to the later years.
