Hello, I recently purchased an ‘07 that this guy used to track and I’m in the process of making it streetable again. Last thing I need to do is wire up an integrated tail light. Previous owner just cut the wiring and I’ve searched through the forums and cannot find the proper layout. I also attached images of a tail light he provided. Any help on how to get this to work is appreciated!!

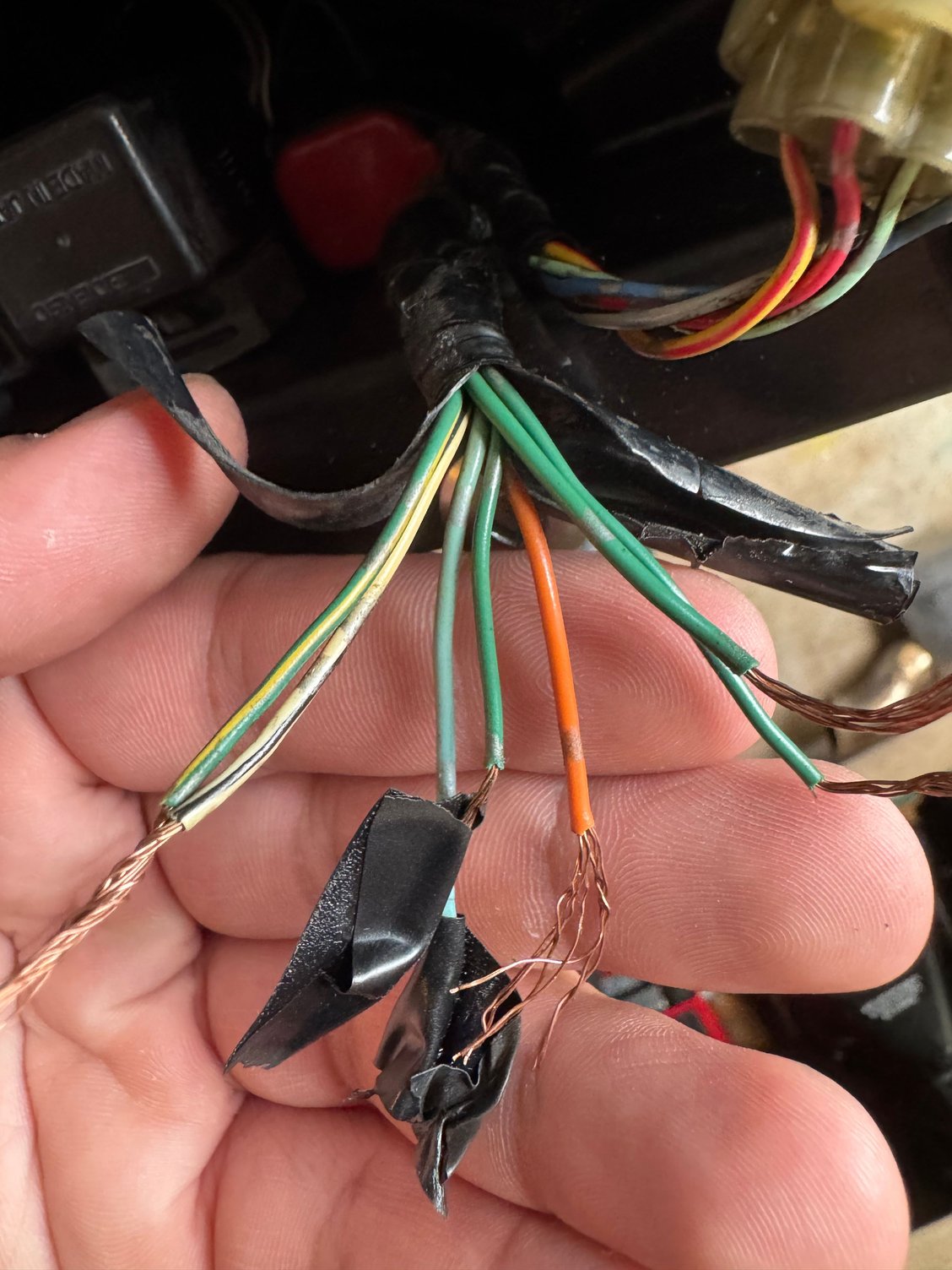

Wires coming from bike

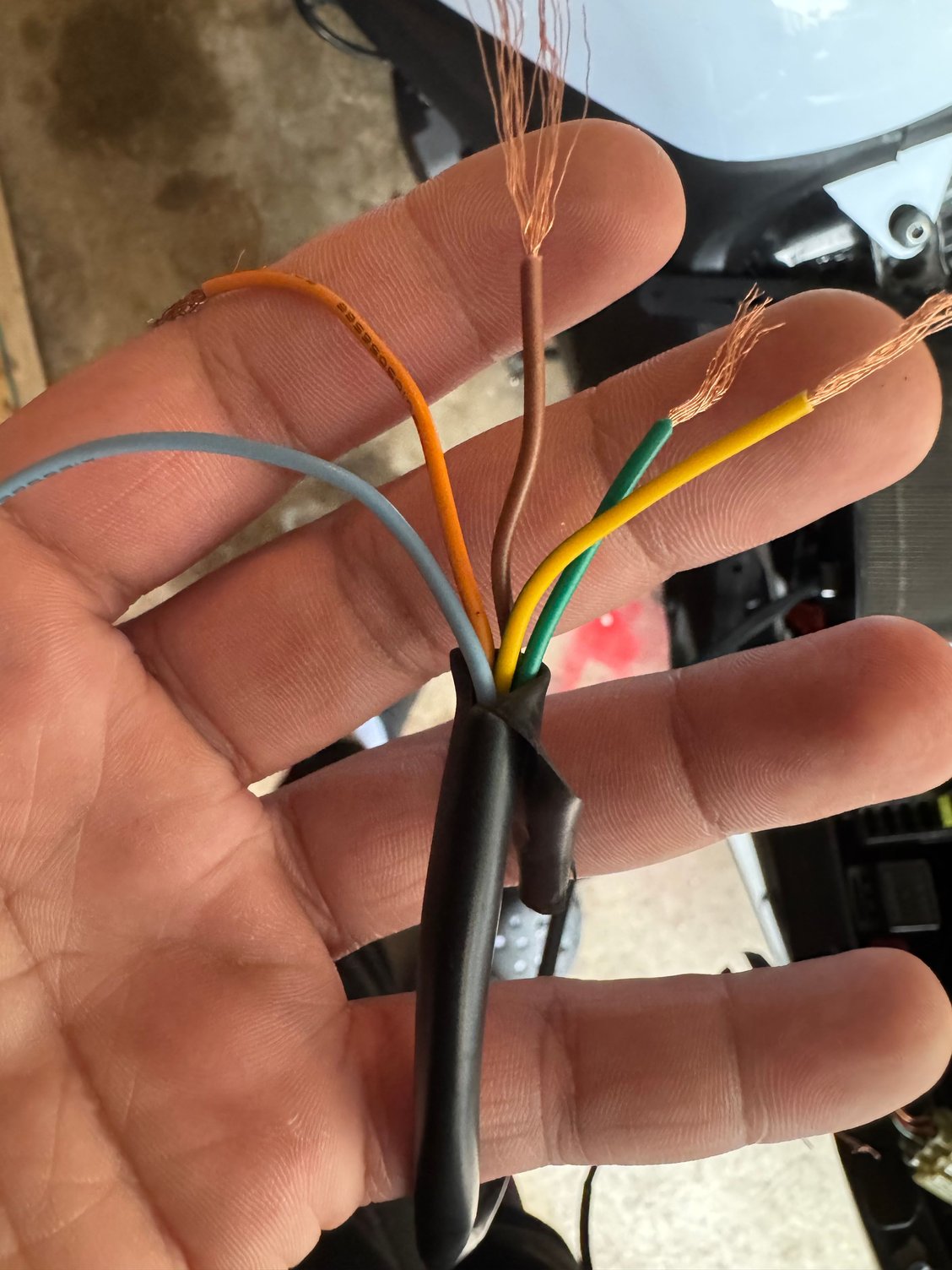

Wires coming from tail light



Use your meter to find out which wire is earth, probably brown or green, then all the others are the different lights.



I guess you don’t have a wiring diagram, but you can find a service manual for free online.

While I’m looking at the manual for an ‘03, it appears that wires coming from the bike are:

Green is ground

Orange is left signal

Light Blue is right signal

Green/Yellow is either tail+license light, or brake light.

That’s the best I can figure, but a manual for your year should give you a better idea.

HTH

-Sparky
