So i’ve seen a lot of people on here getting a no spark issue even after replacing a bunch of parts, i have found in most cases including mine it’s the zener diode on the pink wire going out to the ignition. And for people that have the after market ignition like i do there are wire that need to be moved on the ignition itself. I figured I’d share as Ive been dealing with the no spark for about a month and had to search multiple forums to piece together everything.
The zener diode is a 3.9V 0.5w
I used a 3.9v 1w
I placed the diode by the ecu itself instead of at the ignition for easier access if something happens down the line.
I disconnected the black wire from the ignition and moved the green wire to the open port
If anyone needs more pictures or information feel free to ask
I hope this help as a strait answer like this one would have helped me ALOT

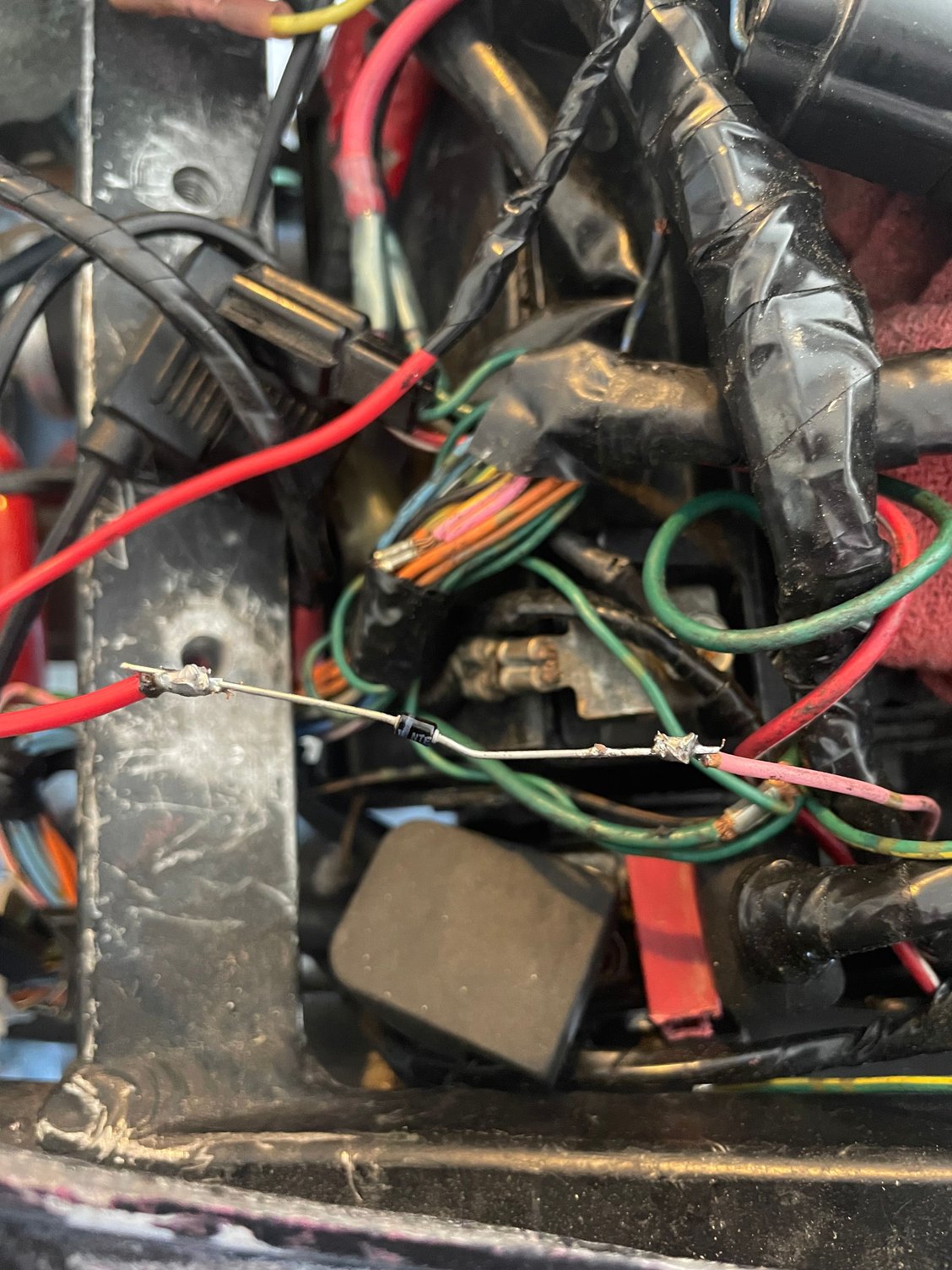

In the photo with the diode there’s a pink wire and a red wire attached to it. They are both the pink wire, I needed to extend it.
@F4cbr600 Welcome to the forum. Thanks for sharing this information and you're right that's a common issue. Is there additional information about the specific Zener Diode you used, like part number, or source where you acquired it?
@F4cbr600 Welcome to the forum. Thanks for sharing this information and you're right that's a common issue. Is there additional information about the specific Zener Diode you used, like part number, or source where you acquired it?
The part number for the diode is NTE5007A
You can get them from electrical supply stores or amazon/ebay for dirt cheap
So i’ve seen a lot of people on here getting a no spark issue even after replacing a bunch of parts, i have found in most cases including mine it’s the zener diode on the pink wire going out to the ignition. And for people that have the after market ignition like i do there are wire that need to be moved on the ignition itself. I figured I’d share as Ive been dealing with the no spark for about a month and had to search multiple forums to piece together everything.
The zener diode is a 3.9V 0.5w
I used a 3.9v 1w
I placed the diode by the ecu itself instead of at the ignition for easier access if something happens down the line.
I disconnected the black wire from the ignition and moved the green wire to the open port
If anyone needs more pictures or information feel free to ask
I hope this help as a strait answer like this one would have helped me ALOT
In the photo with the diode there’s a pink wire and a red wire attached to it. They are both the pink wire, I needed to extend it.
Hey is there a way I can get your number so I can ask u a few questions I'm having the same issue or can u text me or call 9729214746 Chris it would be greatly appreciated thanks
So i’ve seen a lot of people on here getting a no spark issue even after replacing a bunch of parts, i have found in most cases including mine it’s the zener diode on the pink wire going out to the ignition. And for people that have the after market ignition like i do there are wire that need to be moved on the ignition itself. I figured I’d share as Ive been dealing with the no spark for about a month and had to search multiple forums to piece together everything.
The zener diode is a 3.9V 0.5w
I used a 3.9v 1w
I placed the diode by the ecu itself instead of at the ignition for easier access if something happens down the line.
I disconnected the black wire from the ignition and moved the green wire to the open port
If anyone needs more pictures or information feel free to ask
I hope this help as a strait answer like this one would have helped me ALOT
In the photo with the diode there’s a pink wire and a red wire attached to it. They are both the pink wire, I needed to extend it.
Mine doesn't have the pink wire on the ignition but has the diode option I have multiple pink wires on the ecu and one under the headlight iin the harnass I do not have spark and have ordered a new regulator but tested the one I Have and seems to be working
Do you have the HISS system on your bike? If so that has a different immobilizer set up.
You could also have an aftermarket ignition that is not set up correctly.
