Hi Guys.

Looking for pics of the airbox... closeups plz.

Took my airbox out and intake boots... thought I would remember how they go back in...

oops..

so Now I ask fo ur help..

Anybody? I am trying to figure out how the boots sit in the airbox, since the boots are used across different models...

Thx

Art



Boots are numbered one to four, one on the left, as I recall.
Best way is to attach them to the carbs BEFORE YOU REFIT -
trying to get them on later is a bear !
Sorry I don't have a pic Art but if you're in real trouble I'll lift my tank !



thx shadow, but i think that we are talking about different things...
not the boots that go between carbs and eng

but carbs and airbox left side pair and right side pair..if i get a chance ill try to post pics...

thx again shadow..
plus i think you got an earlier version
mine is 93 and im pretty sure things changed new carbs and style of airbox..



Does this help at all, man? It may...

1993 Air Box

If not, I have a '95 and I may have a couple pics of the airbox. Let me know.



Thanks Dylan, actually i was hoping for actual pics.. If you look at the boots, there are several ways/angles to install them ie.. prob across several bike models...again these are the twin/double boots that connect the carbs to the airbox... #11s going into # 3.
When I disassembled them, i thought i would remember how they fit, but oopss.. think its old age..
anyways.. like i said actual pics of the sides and bottoms and much as possible would be awesome... thx again



Sorry Art - I was talking about between airbox and carbs but as it's a later model it doesn't help. The later model look to be easier to reassemble than the 89-92 models which are a real pig !
Good luck with it !



This probably won't help much.... but.... I can take some pics tomorrow for you. This is just one I had laying around.



Yup almost gosh thats close.

A side view would be perfect!!!!

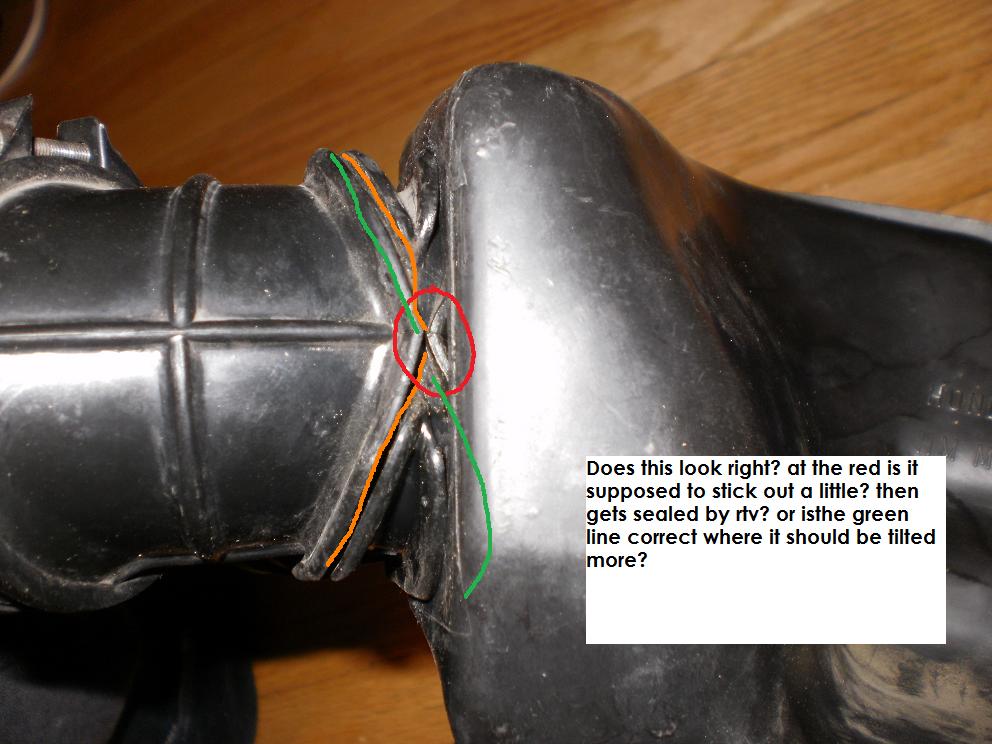

I've attached some pics to better illustrate my Dilemma!

as the great "Red" like to say ( what a dumbass)

oopps.

Art



Hi dylan and fellow canes!!! any chance i can get those very last pics? Its killing me... the weather is still good up here(CHitown) and i need to ride!
You guys understand right?

Help Plz!!!!! anybody ??

Thx


Art



Sorry man, there is no way I'm taking the plastics off to take pictures. That's more work (of the hobby variety) than I do in a year. Is that what is required?
