F4i - Main Forum Main F4i discussion board

F4i Service Manual

  #11
Old 04-12-2007, 05:44 AM
Join Date: Feb 2006
Location:
Posts: 789
Default RE: f4i Service Manual

ORIGINAL: chpsk8er630

I have an 06 f4i,Will that manual work for my bike? What are the changes from the years?
It's good for 2001-2006.......the only changes were just the cosmetics & subframe in the rear on the 2004-2006 models (banana seat).....everything else is the same

  #12
Old 04-13-2007, 02:12 AM
Senior Member
Join Date: Jan 2007
Location:
Posts: 205
Default RE: f4i Service Manual

ok thanks, But what did they change about the subframe? just curious cause i would like to eventually stunt with the bike.

  #13
Old 04-13-2007, 04:51 AM
Join Date: Feb 2006
Location:
Posts: 789
Default RE: f4i Service Manual

Well the subframes, undertail, seats, rear cowl/plastic, battery tray/trunk, rear passenger pegs/brackets, and all that stuff are totally different on the 2004-2006.....that's all. The screw/bolt holes are in different places since it has different parts connected on the subframe.

They're totally compatible and could be swapped (most guys that own 2004-2006 swap to the dual seat set up of the 2001-2003 bikes). If you took a complete subframe assembly (like circled below) and swapped it to a different year....it'd bolt right up.

Justthat wholerear end is different because the 2001-2003 had split seats & the 2004-2006 had a single (banana) seat......I circled what I meant:



  #14
Old 04-14-2007, 03:44 AM
Senior Member
Join Date: Jan 2007
Location:
Posts: 205
Default RE: f4i Service Manual

ok cool thanks, i didnt know if they changed the material they made it out of or anything.

  #15
Old 04-14-2007, 01:38 PM
Join Date: Oct 2006
Posts: 1
Default RE: f4i Service Manual

thanks a lot now i got the manual

  #16
Old 04-29-2007, 07:30 PM
Join Date: Jul 2006
Location:
Posts: 87
Default RE: f4i Service Manual

Why don't the manuals have the wiring diagrams? Chapter 20 is missing.... :-(

  #17
Old 02-23-2018, 01:07 AM
Junior Member
Join Date: Feb 2018
Posts: 1
Default Shop/Workshop manual



Hi Ed,

it is an old thread, but as I was looking for the same thing, decided to reply. Maybe you can find what you are looking for.

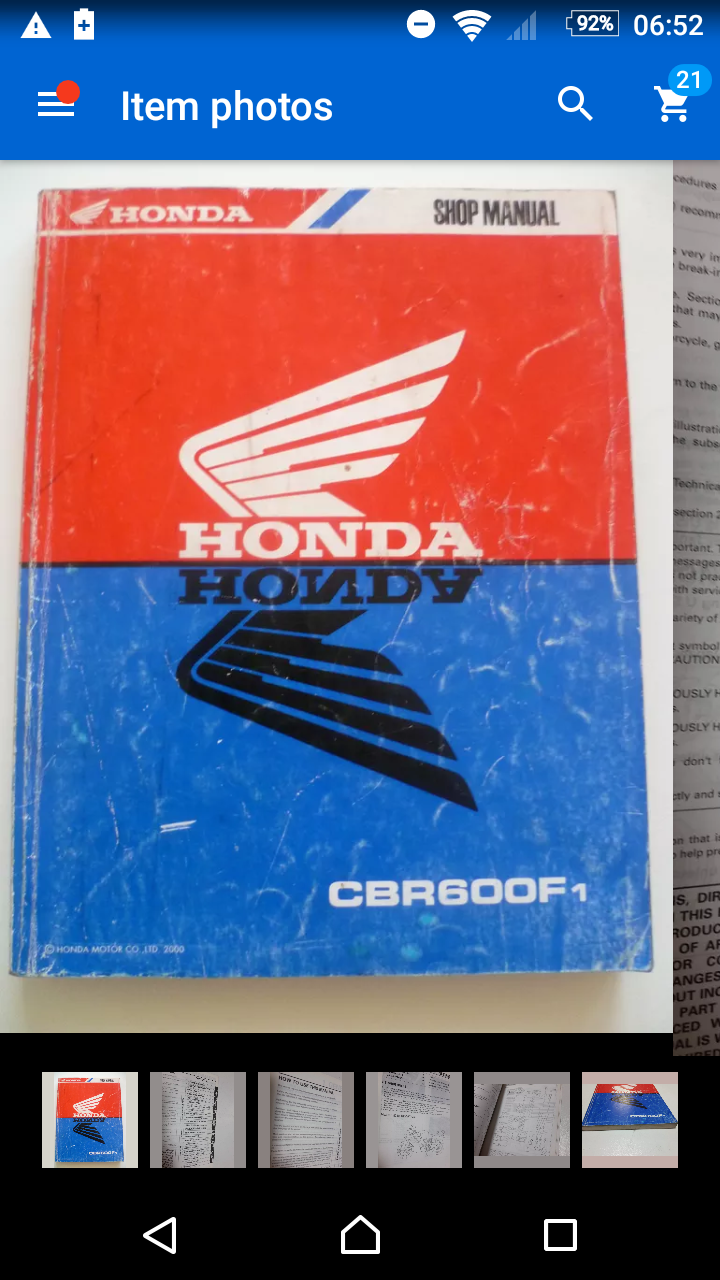

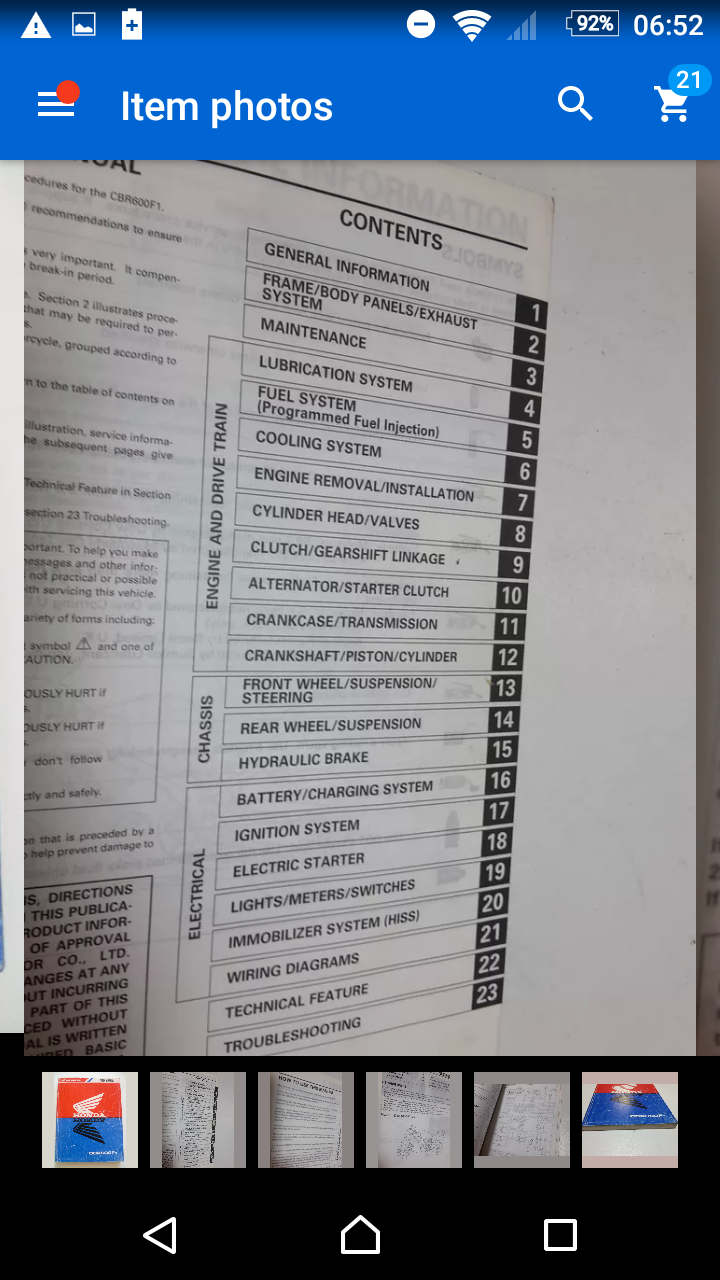

Yes, there is another manual, specific for your bike. It is called Shop Manual. This is an example from eBay on the previous model. I am looking for exactly the same manual like you. As I couldn't find it online, I have contacted one of the Honda Parts dealers and they were very helpful and will order one for me. Of course it will take some time till they have it, but I am happy to find one.
If you haven't found one yet, get in touch with some Honda Parts dealer and see if they can help.

Hope that helps.

Regards

Angelo

  #18
Old 02-23-2018, 01:18 AM
CaBaRet's Avatar
Super Moderator
Join Date: Oct 2016
Location: UK
Posts: 2,365
Default

Hi , have a look here
StephyGee.com
