Hi I'm looking for colour wire diagram for cbr 600 1990 fL
if there are any about I have tried searching forum but no joy
I can't activate the solionid



Is search broken for you? First link is this - https://cbrforum.com/forum/cbr-600f-...-144273/page3/



Yes that's perfect thank you very much 🙏



2 things needed to activate solenoid:

1. +12v batt voltage on yel/red wire when pushing START button. No power here can be fuse, ignition/kill/start switches, and wiring in between.

2. -neg connection to chassis-ground on grn/red wire. If not, usually problem with safety-interloc switches: clutch, kickstand or neutral

This is 5-min fix with multimeter, less in many cases...



Thanks going to make start on it tonight.
here's where I'm upto

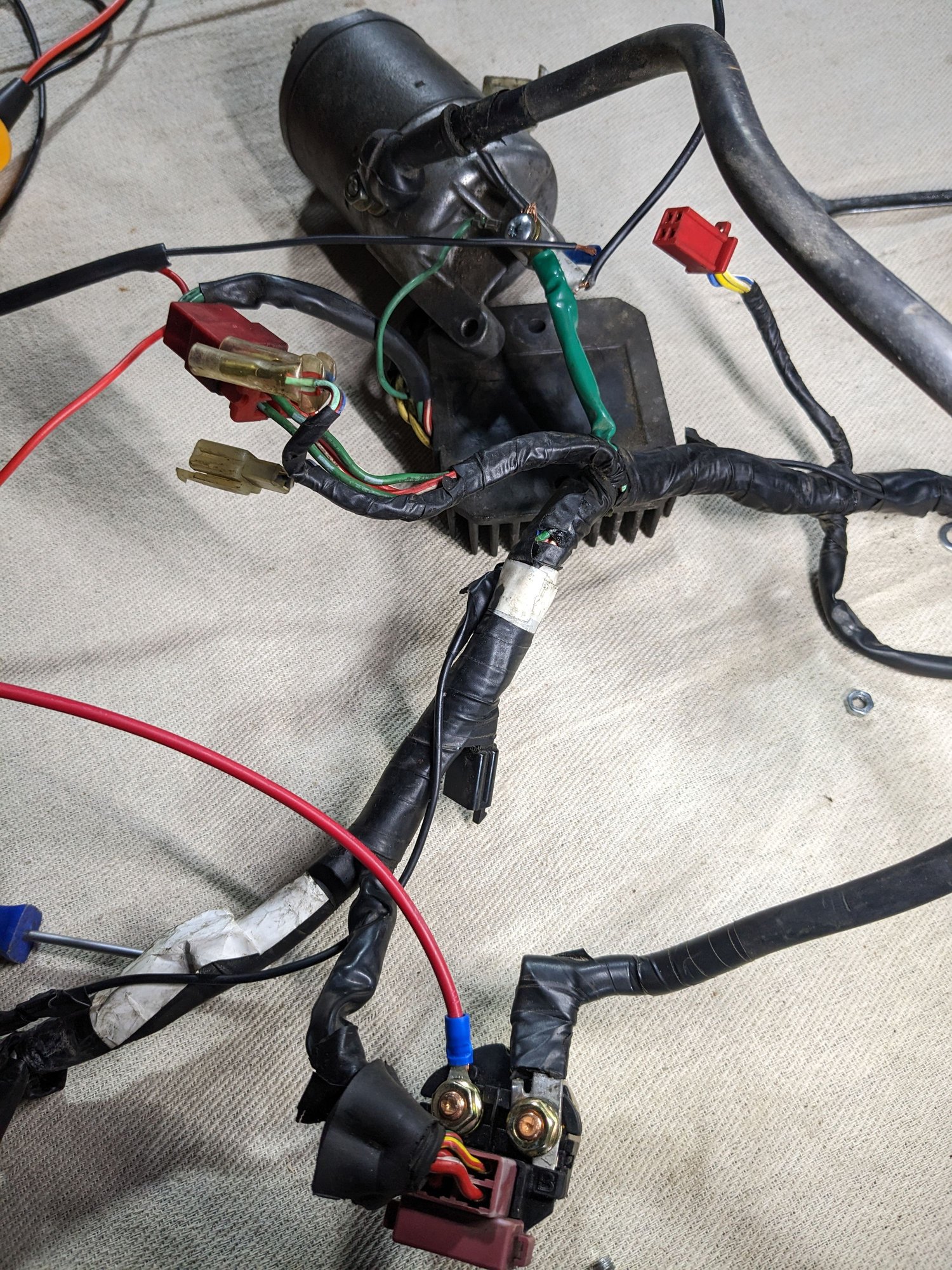

Unfortunately No solionid click there is constant power going to starter motor just keeps spinning , neutral light on dash .

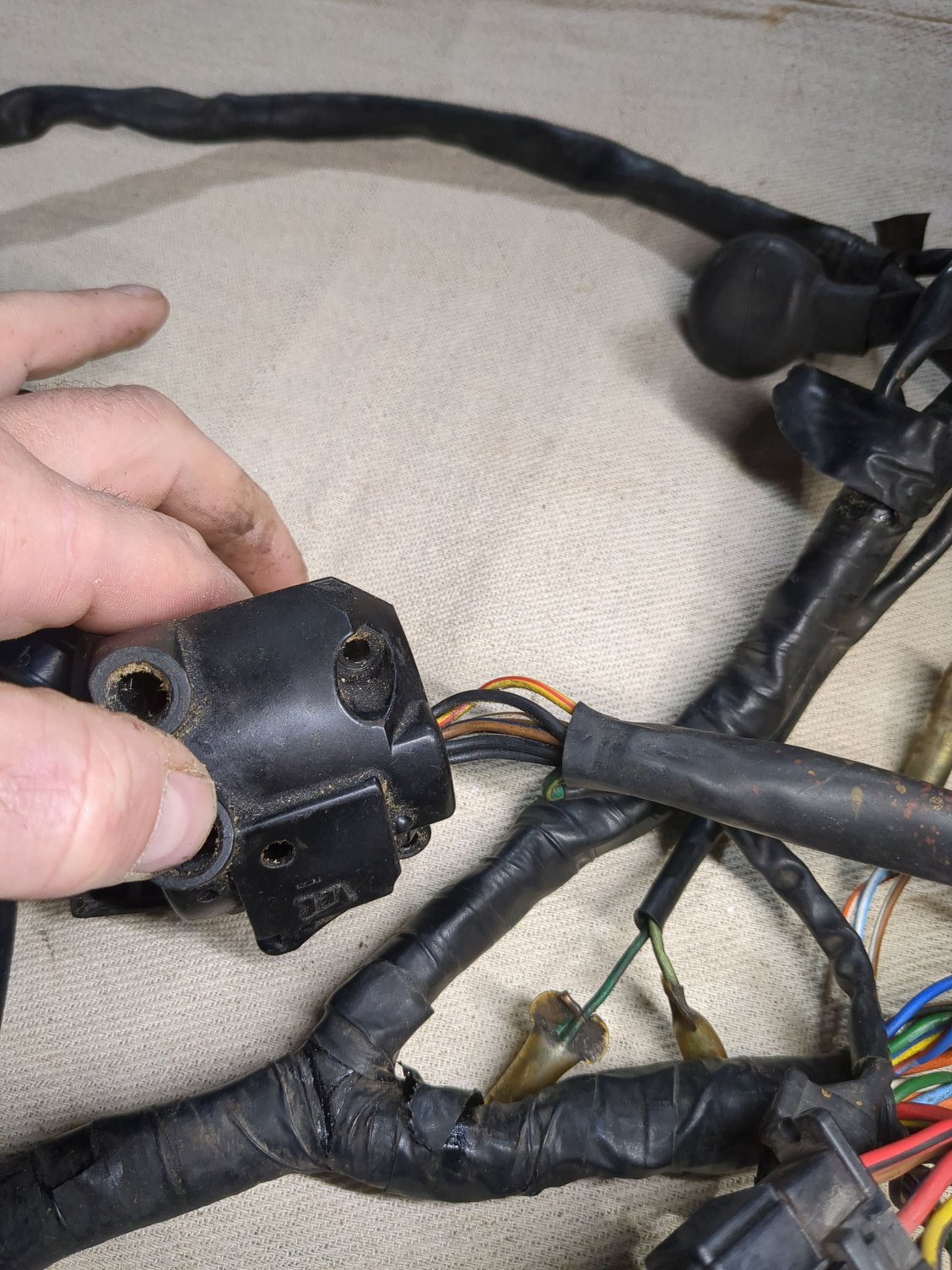

where can I find the safety switch on the loom if the switch is missing on the loom or disconnect would engine not run sorry for so many questions.



Safety switches aren't issue at moment.
Is constant power going to starter when you turn key ON?
If so, of course there's no solenoid click, it's already ON and stuck ON
Or the start-button stuck in pressed-down position.

To determine which, unplug red 4-wire connector at starter-solenoid.
Does starter turn OFF?

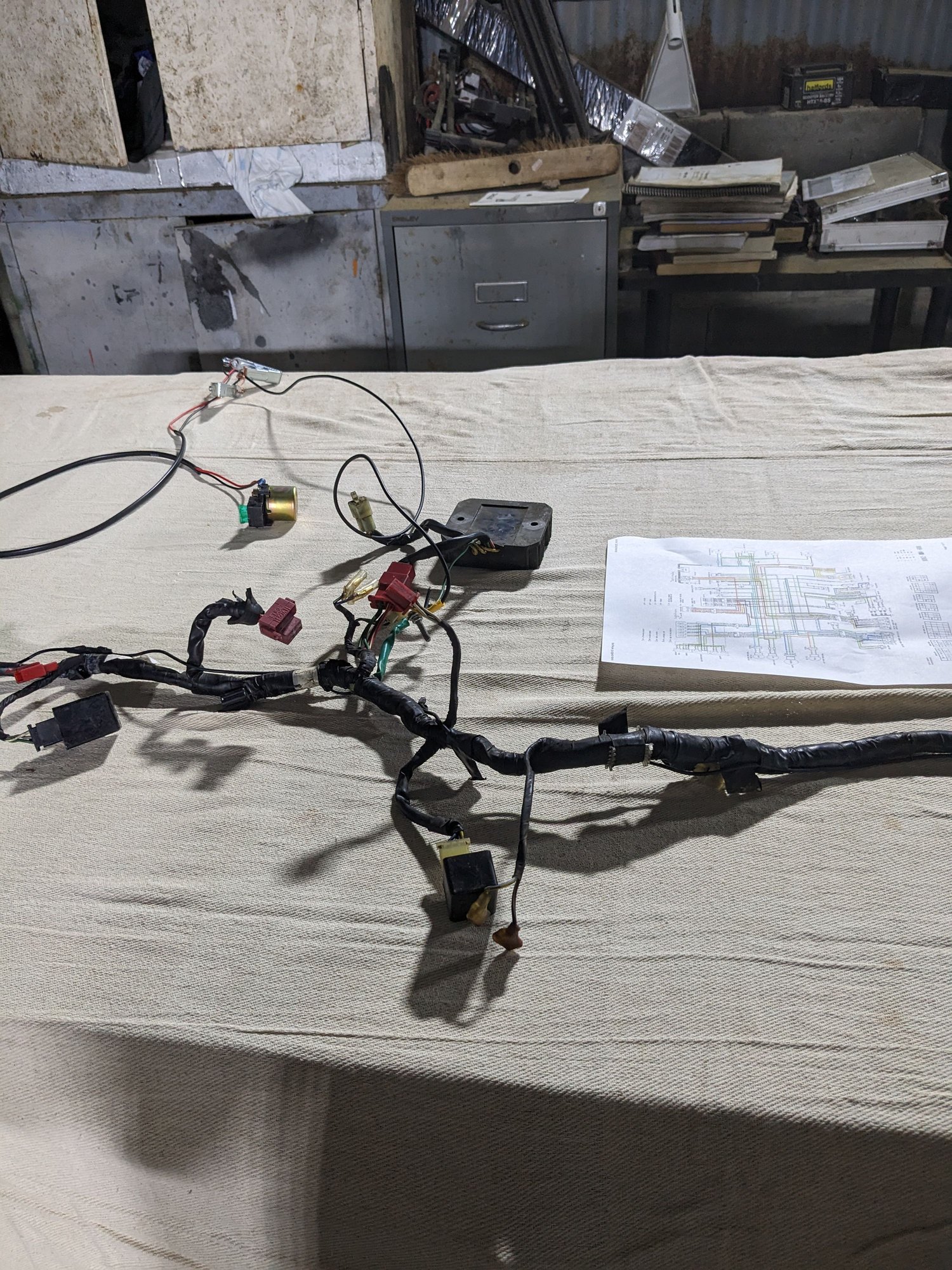

Thanks Wired all up to wire diagram but now starter motor has stopped



Ok.... did you figure out why starter was running amock earlier??
And what did you do to fix that?



I had wires direct to battery my bad what iv found it keeps killing the starter solenoids it's had 3 now
thanks for helping
​​​​​
