Hi All,
Honda Fireblade CBR954RR 2003
Just rebuilt the gearbox after suffering from the bike jumping out of second gear.
Having a little problem with a vacuum hose or two

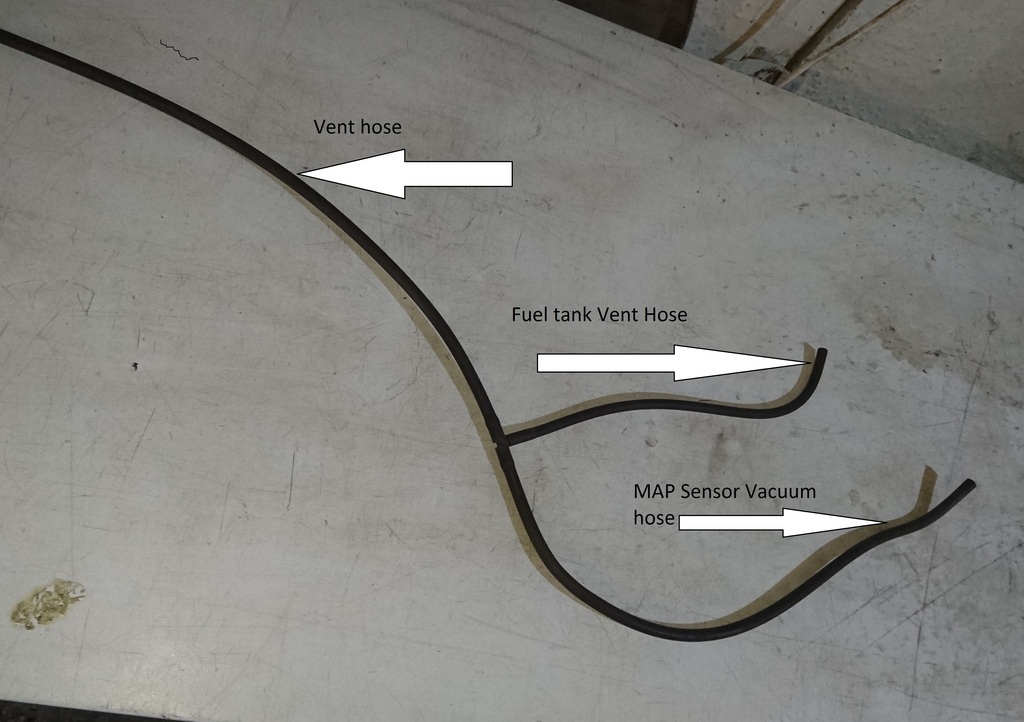

I have one long hose with a 90 angle connector part way up it, I think one end went to the MAP sensor and one end to the fuel tank vent, the long section then vented to ground? See picture
I have then noticed a vacuum hose on the throttle body, it looks like all throttle body's have a short vacuum hose going to a five way connector block, this hose then comes of the connector block, where does it go? See picture
Many thanks for you help
Honda Fireblade CBR954RR 2003
Just rebuilt the gearbox after suffering from the bike jumping out of second gear.
Having a little problem with a vacuum hose or two
I have one long hose with a 90 angle connector part way up it, I think one end went to the MAP sensor and one end to the fuel tank vent, the long section then vented to ground? See picture
I have then noticed a vacuum hose on the throttle body, it looks like all throttle body's have a short vacuum hose going to a five way connector block, this hose then comes of the connector block, where does it go? See picture
Many thanks for you help
